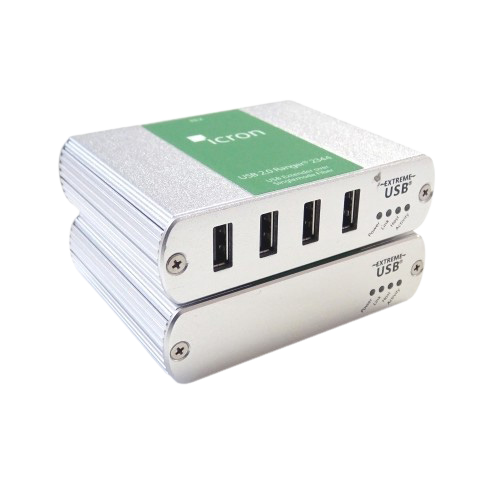

USB 2.0 Ranger 2344 Four-port Singlemode Fiber 10km extender

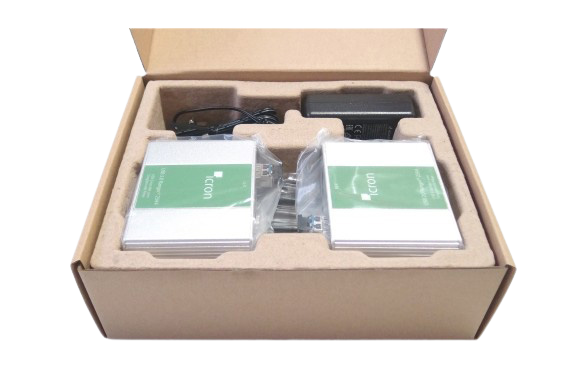

The Ranger 2344 comes with the following items in the box:
Remote extender (REX)
Local extender (LEX)
1 x USB 2.0 Type A to Type B cable
100-240V power adapter
Country specific power cord
Quick start guide
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Overview
The USB 2.0 Ranger® 2344 allows users to extend USB 2.0/1.1 connections up to 10km (6.2 miles) using singlemode fiber optic cable.
This 4-port USB 2.0 singlemode fiber extender supports data rates at up to 480 Mbps and is plug and play – no software drivers required – for all major operating systems: Windows®, macOS™, and Linux®.
Additionally, this ExtremeUSB® based USB 2.0 singlemode fiber extender system is FCC/CE Class B certified and ideal for use with all USB peripherals including keyboards, mice, interactive whiteboards, flash drives, hard drives, audio devices, web cameras, and any other USB 2.0 or 1.1 devices.
Features
4-port USB 2.0 extender supporting all USB 2.0/1.1 devices up to 480 Mbps
Up to 10km (6.2 miles) extension using singlemode fiber
Integrated hub supplying up to 1 Amp to each USB port; 2.5 Amps total shared
Electrical isolation
Mass Storage Acceleration for USB 2.0 device bulk transfers
Metal enclosures with FCC/CE Class B certification
Two-year warranty
ExtremeUSB® suite of features:
Transparent USB extension
True plug and play; no software drivers required
Works with all major operating systems: Windows®, macOS™ and Linux®
Specifications for USB 2.0 Ranger 2344 Four-port Singlemode Fiber 10km extender
| USB Extender | |
|---|---|
| USB standard | USB 2.0 |
| Distance | 10km |
| Uncategorized | |
| Power Adapter | Europe or Australia or Japan or North America or Unit Kingdom |
| USB ports | 4 USB ports |
| Transmission Media | Singlemode Fiber |
| Power Adapter Location | REX |
