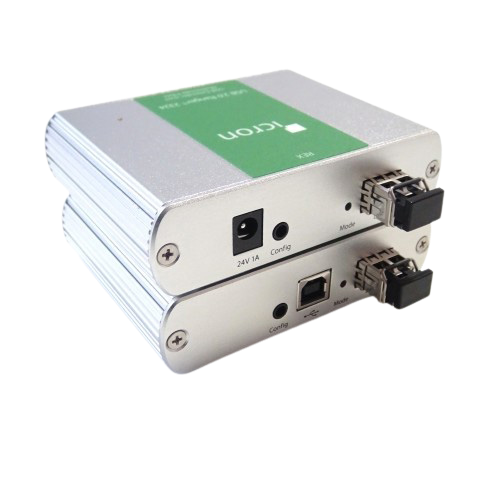

USB 2.0 Ranger 2324 Four-port Multimode Fiber 500m extender
The Ranger 2324 comes with the following items in the box:
Remote extender (REX)
Local extender (LEX)
1 x USB 2.0 Type A to Type B cable
100-240V power adapter
Country specific power cord
Quick start guide
*Please be aware that the Ranger 2324 does NOT come with a Multi-mode fibre cable.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Overview
The USB 2.0 Ranger® 2324 allows users to extend USB 2.0/1.1 connections up to 500m using OM2 (or better) fiber optic cable.
This 4-port USB 2.0 multimode fiber extender supports data rates at up to 480 Mbps and is plug and play – no software drivers required – for all major operating systems: Windows®, macOSTM, and Linux®
Additionally, this ExtremeUSB® based USB 2.0 multimode fiber extender system is FCC/CE Class B certified and ideal for use with all USB peripherals including keyboards, mice, interactive whiteboards, flash drives, hard drives, audio devices, web cameras, and any other USB 2.0 or 1.1 devices..
Features
- 4-port USB 2.0 extender supporting all USB 2.0/1.1 devices up to 480 Mbps
- Up to 500m extensions using OM2 multimode fiber
- Integrated hub supplying up to 1 Amp to each USB port; 2.5 Amps total shared
- Electrical isolation
- Mass Storage Acceleration for USB 2.0 device bulk transfers
- Metal enclosures with FCC/CE Class B certification
- Two-year warranty
- ExtremeUSB® suite of features:
- Transparent USB extension
- True plug and play; no software drivers required
- Works with all major operating systems: Windows®, macOSTM, and Linux®
Specifications for USB 2.0 Ranger 2324 Four-port Multimode Fiber 500m extender
| USB Extender | |
|---|---|
| USB standard | USB 2.0 |
| Distance | 500m |
| Uncategorized | |
| Power Adapter | Europe or Australia or Japan or North America or Unit Kingdom |
| USB ports | 4 USB ports |
| Transmission Media | Multimode Fiber |
| Power Adapter Location | LEX and REX |
