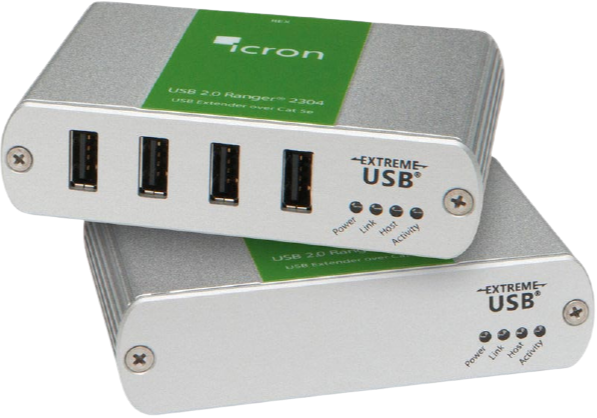

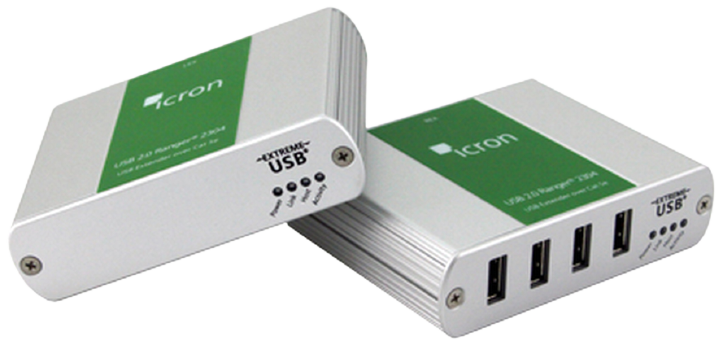

4-port USB 2.0 Ethernet LAN Extender System
The Ranger 2304GE-LAN comes with the following items in the box:
Remote extender (REX)
Local extender (LEX)
1 x USB 2.0 Type A to Type B cable
100-240V power adapter
Country specific power cord
Quick start guide
*Please be aware that the Ranger 2304GE-LAN does NOT come with a CAT5e cable.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Overview
Overview
The USB 2.0 Ranger® 2304GE-LAN allows users to extend USB 2.0/1.1 connections over a GigE LAN or single CAT 5e/6/7 cable up to 100m in point-to-point fashion. Extending over LAN saves on installation time and provides IT visibility.
This 4-port USB 2.0 LAN extender supports data rates at up to 480 Mbps and is plug and play – no software drivers required – for all major operating systems: Windows®, macOSTM, and Linux®
Additionally, this ExtremeUSB® based 4-port USB 2.0 LAN extender system is FCC/CE Class B certified and ideal for use with all USB peripherals including: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, web cameras and any other USB 2.0 or 1.1 device.
Features
- Extends USB as direct connect or through 100Mbps or 1000Mbps LANs
- Extends USB 2.0 and 1.1 (both low-speed and full-speed) devices
- Operates with USB 3.0, 2.0 and 1.1 hosts
- Supports all USB compliant peripherals (including isochronous devices, such as webcams or audio devices) up to 480 Mbps
- Uses a standard solid core CAT 5e cable for easy installation or existing LAN infrastructure
- Pre-paired networked configuration for simple installation
- Number of devices can be increased using additional USB hubs
- FCC Class B
- Rugged metal enclosure
- ExtremeUSB® suite of features:
- Transparent USB extension
- True plug and play; no software drivers required
- Works with all major operating systems: Windows®, OS X® and Linux®
Specifications for 4-port USB 2.0 Ethernet LAN Extender System
| USB Extender | |
|---|---|
| USB standard | USB 2.0 |
| Distance | 100m |
| Uncategorized | |
| Power Adapter | Europe or Australia or Japan or Unit Kingdom |
| USB ports | 4 USB ports |
| Transmission Media | CAT 5e/6/7 or Local Area Network |
| Power Adapter Location | REX |
