Ag6400S 4-Channel, IEEE802.3af & at

This product is no longer available.

PSE Module, 4-Channel, IEEE802.3af & at compliant, SIL.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Silvertel


Silvertel specialises in the design and development of power modules and advanced telecom interface solutions. These solutions include Power over Ethernet modules supporting applications up to 200W. Smart Lighting modules combining PoE with LED driver functionality. Qi Wireless Power modules - transmit and receive. , Battery charger modules for Lithium Ion (Li-Ion), Lithium Polymer (Li-Po) and sealed Lead Acid (SLA) batteries. Analog Telecom modules - SLIC and DAA (FXS and FXO).


FIND OUT MORE

Overview

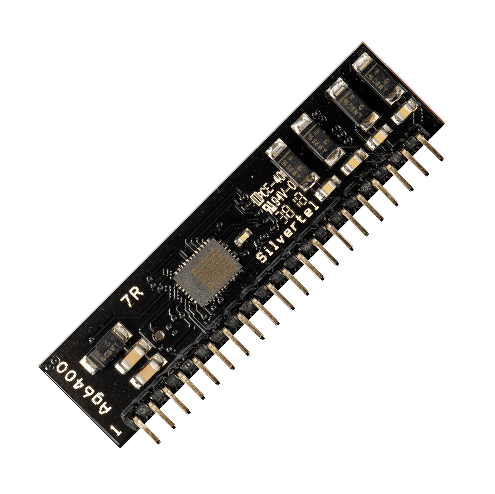

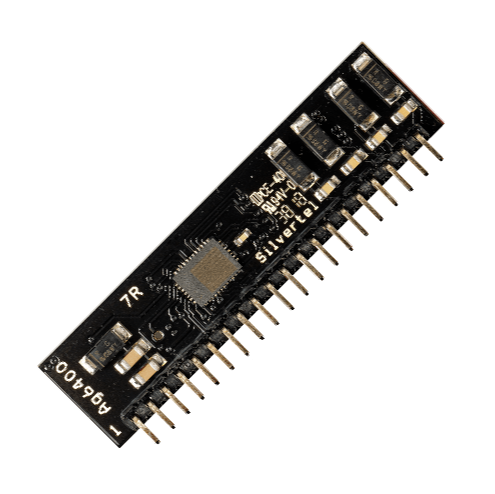

The Ag6400 is a 4 channel Power Sourcing Equipment (PSE) module designed to inject up to 39W of power from each of up to four output ports into conventional twisted pair Category 5 Ethernet cable. These modules provide exceptional efficiency while maintaining compatibility with IEEE 802.3af and 802.3at Power-over-Ethernet (PoE) devices.

Features

  • 4 Channel

  • IEEE802.3af & at compatible

  • Small SIL Footprint- SIL - 50mm(L)x8mm(W)x14mm(H)

  • Over Current & Short Circuit Protection

  • Signature & Class recognition

  • 30W per channel

  • Hardware and Software modes

  • Industrial Temperature

  • Simple integration

Specifications for Ag6400S 4-Channel, IEEE802.3af & at

Role PSE
Compliance IEEE802.3af/at
Output Voltage 48V/57V
Temperature Range Industrial Temperature with Temp protection
Power module package SIL
Channel Four Channel
Protection Over Current & Short Circuit
Output Power 19~39W/Channel
