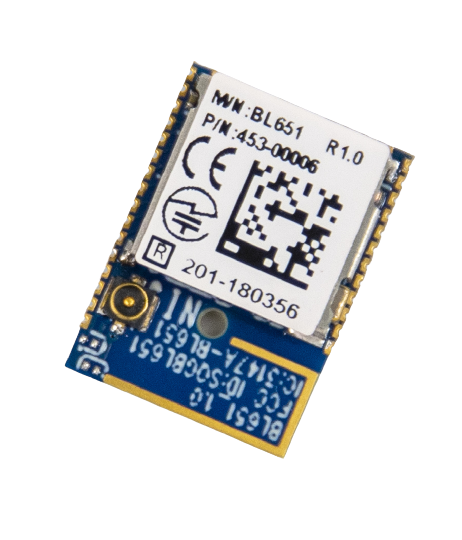

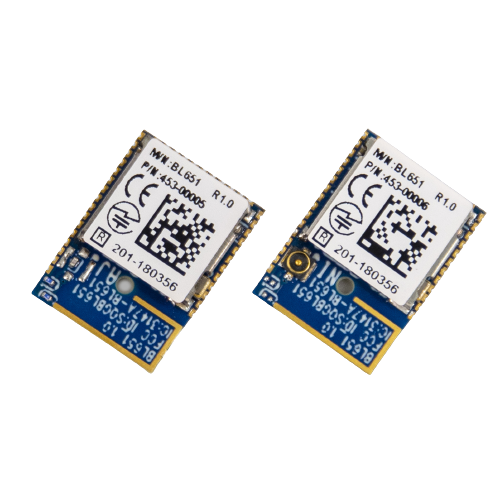

BL651 Bluetooth 5.0 Module
Laird’s BL651 Series contains the latest Nordic nRF52810 silicon with Bluetooth 5 Low Energy, ANT and Proprietary 2.4 GHz capabilities and groundbreaking ultra-low power performance.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
The BL651 series exposes all the capabilities of the Nordic nRF52810 silicon in a small, fully certified module with simple soldering castellation for easy prototyping and mass production manufacturing. Use the Nordic SDK & SoftDevice or Zephyr Project to deliver your BLE application.
Let Laird Connectivity’s innovative BL651 series and decades of expertise in Bluetooth module design speed your product to market.
In addition, the BL651 series is a 100% PCB footprint drop-in compatible with the BL652 Series of modules
Bluetooth v5 Higher Throughput 2MPHY
ANT and Proprietary 2.4GHZ radios options
Powerful – 64 MHz 32-bit Cortex M4 with 192 kB Flash/24 kB RAM
Widest range of configurable interfaces: UART, I2C, SPI, ADC, GPIO, PWM
Industrial Temp Rating (-40º to +85º C)
Ultra-Small footprint (14 mm x 10 mm x 2.1 mm)
Bluetooth LE Roles – Peripheral (x2) and Broadcaster– concurrent (Nordic SDK).
Major security features: LE Secure Connections, Link Layer Ping, Privacy v1.2
Built on years of experience with Nordic (BL600, BL652, and BL654 Series to date)
Fully certified: FCC, ISED, EU, MIC, AS/NZS, and RCM
Specifications for BL651 Bluetooth 5.0 Module
|Antenna||External Antenna or Integrate Antenna|
