PE42822 High power UltraCMOS SPDT RF Switch

PE42822 High power UltraCMOS SPDT RF Switch

SG$ 7.33 SG$ 7.33 7.335 SGD

US$ 5.41

This combination does not exist.

Add to Cart

SPDT, High Power, Absorptive, 50Ω RF Switch

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Psemi

pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.

FIND OUT MORE

Overview

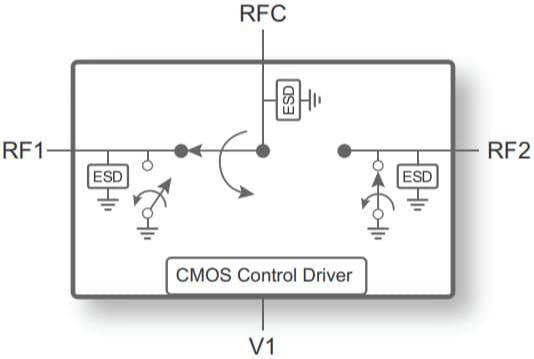

The PE42822 is a HaRP™ technology-enhanced absorptive 50Ω SPDT RF protection switch designed for use in high power and high-performance wireless infrastructure applications such as mid-power microcell products, supporting frequencies up to 3.8 GHz. This switch features high linearity, which remains invariant across the full supply range. The PE42822 also features exceptional isolation, fast switching time and is offered in a 16-lead 3 × 3 mm QFN package. In addition, no external blocking capacitors are required if 0 VDC is present on the RF ports.

Features

Excellent single-event peak power handling of 46.1 dBm LTE

Exceptional linearity performance across all frequencies

Extended operating temperature of 105°C

1.8V/3.3V TTL compatible control

High ESD performance of 3 kV HBM on RF pins to ground

Packaging: 16-lead 3 × 3 × 0.85 mm QFN
