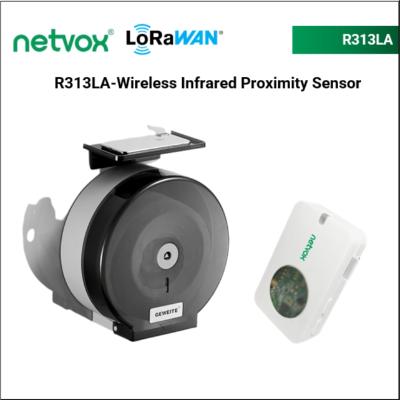

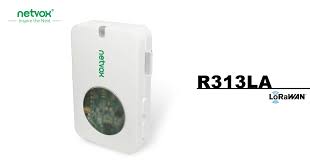

R313LA-Wireless Infrared Proximity Sensor
R313LA is able to detect the existence of the object nearby. It has an infrared proximity sensor that can detect if there is object existing within it detection range and transmits the detected data to Gateway for display via a wireless network; it uses the SX1276 wireless communication module.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Overview
R313LA is able to detect the existence of the object nearby. It has an infrared proximity sensor that can detect if there is object existing within it detection range and transmits the detected data to Gateway for display via a wireless network; it uses the SX1276 wireless communication module.
Features
- Applying SX1276 wireless communication module
- 2 sections of 3.0V CR2450 coin cell batteries in parallel
- Infrared proximity sensor
- Compatible with LoRaWANTM Class A
- Using frequency hopping spread spectrum technology
- Configure parameters through third-party platform
- Read data and set alarms via SMS text and email (optional)
- Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
- The product has low power consumption and supports longer battery life
Note:
The battery life is determined by the frequency reported by the sensor and other variables, please refer to http://www.netvox.com.tw/electric/electric_calc.html .
On this website, users can find various types of batteries with different configurations.
Specifications for R313LA-Wireless Infrared Proximity Sensor
| LoRaWAN | |
|---|---|
| Configuration Interface | UART |
| Uncategorized | |
| Frequency band | AS923 or AU915 or EU868 or US915 |
| Waterproof | IP30 |
| Class | Class A |
| Power type | 2 pcs 3.0V CR2450 button batteries |
| Sleep Power consumption | 12uA |
| Rx Sensitivity | -136dBm |
| Transmit Power | 16dBm |
| Chipset | SX1276 |
| Sensors | Infra sensor |
