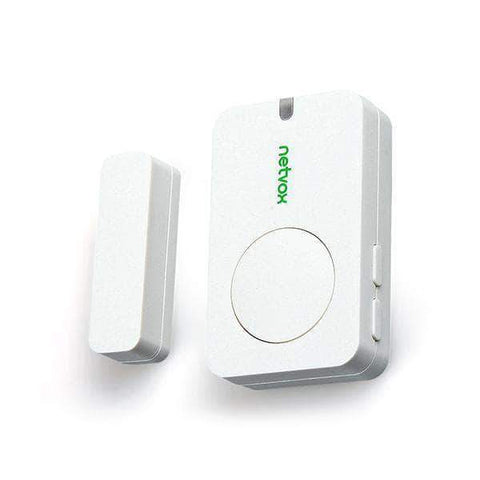

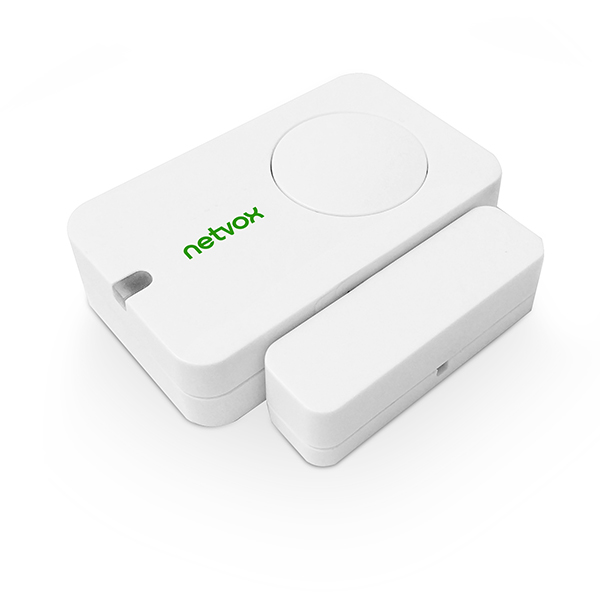

R313A-Wireless Door/Window Sensor

  • Configuration Interface
  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Transmit Power
  • Chipset
  • Sensors

SG$ 139.71 SG$ 139.71 139.71 SGD

US$ 100.00

This combination does not exist.

Add to Cart

The NETVOX wireless seat sensor (two way) R311WA is a device that detects the presence of a seat and is compatible with the LoRaWAN protocol. If there is someone on the seat, R311WA will send a message to the gateway. When detecting no one on a sensor seat, it will send an normal status message back to the gateway .

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.



The device is equipped with a reed sensor, which can be used to detect the status of the door and window. Through the built-in wireless module, it can achieve wireless alarm and other functions. It uses the SX1276 wireless communication module.


    • 2 sections of 3V CR2450 button battery power supply
    • Adopt SX1276 wireless communication module
    • LoRaWAN Class A compatible
    • Frequency Hopping Spread Spectrum (FHSS)
    • Third-Party online wireless sensor monitoring and notification system to configure sensors,view data and set alerts via SMS text and email (optional)
    • Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
    • Improved power management for longer battery life

              Specifications for R313A-Wireless Door/Window Sensor

              Configuration Interface UART
              Frequency band AS923 or AU915 or EU868 or US915
              Waterproof IP30
              Class Class A
              Power type 2 pcs 3.0V CR2450 button batteries
              Sleep Power consumption 12uA
              Rx Sensitivity -136dBm
              Transmit Power 16dBm
              Chipset SX1276
              Sensors Occupancy
