R718PC Wireless RS485 Adapter

  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Sensor Measurement Range
  • TX Power
  • Chipset
  • Sensors

SG$ 228.64 SG$ 228.64 228.64020000000002 SGD

US$ 175.00

This combination does not exist.

Add to Cart

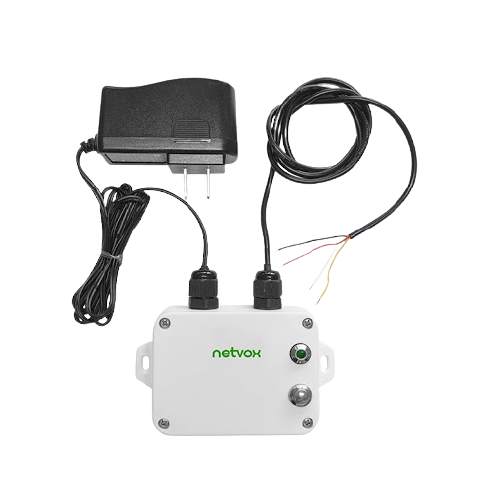

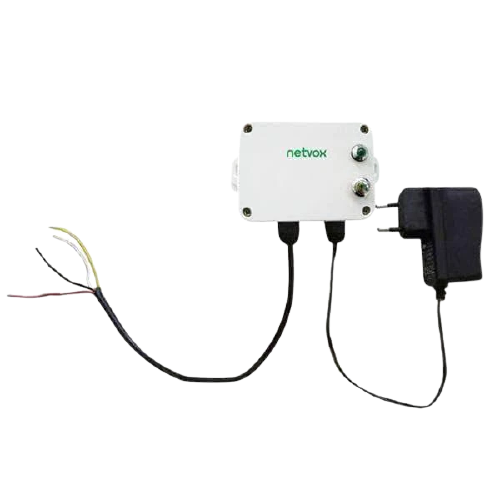

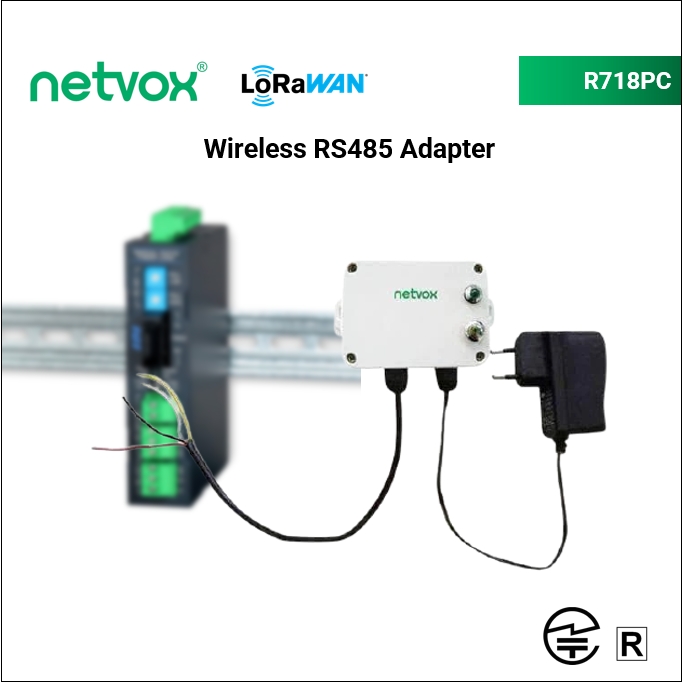

The Netvox R718PC LoRaWAN supports RS485 serial port transparent transmission (RS232 sensor power supply is DC12V), which can send read commands to the sensor supporting RS485 protocol according to the configured cycle time. The information of sensor reply will be directly reported to the gateway and displayed in the interface on the gateway. The R718PC uses SX1276 LoRaWAN wireless communication.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


FIND OUT MORE

Overview

The Netvox R718PC LoRaWAN supports RS485 serial port transparent transmission (RS232 sensor power supply is DC12V), which can send read commands to the sensor supporting RS485 protocol according to the configured cycle time. The information of sensor reply will be directly reported to the gateway and displayed in the interface on the gateway. The R718PC uses SX1276 LoRaWAN wireless communication.



    Features

    • Wireless Range of 10km
    • LoRaWAN Class A compatible
    • Frequency Hopping Spread Spectrum (FHSS)
    • Improved Interference Immunity
    • Improved Power Management for Longer Battery Life
    • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for Sensor Data Messages)
    • Battery Life: Please Refer To Web: http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
    • Over-The-Air Updates (Future)
    • Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data
    • And Set Alerts Via SMS Text And Email (Optional)
    • Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
    • R718X Series Carry Magnets Which Can Be Attached To Ferromagnetic Materials And Objects

              Specifications for R718PC Wireless RS485 Adapter

              Frequency band AS923 or AU915 or EU868 or US915
              Waterproof IP30
              Class Class C
              Power type DC12V
              Sleep Power consumption 20uA
              Rx Sensitivity -136dBm
              Sensor Measurement Range NA
              TX Power 16dBm
              Chipset SX1276
              Sensors RS485
