R720F Wireless Liquid Hand Soap Sensor

Installation Type
Sensor
Waterproof
Class
Frequency band
Power type
Sleep Power consumption
Rx Sensitivity
Sensor Measurement Range
TX Power
Chipset
Certification
Cable length

SG$ 168.02 SG$ 168.02 168.02460000000002 SGD

US$ 129.00

This combination does not exist.

The R718PQA is a wireless communication device that detects toilet occupancy. The device is equipped with a reed switch sensor for detecting the switch status of the door; a built-in PIR sensor (pyroelectric human body infrared sensor) to detect whether someone is in the toilet. Two detections are established at the same time to determine if the toilet is occupied. Through the wireless network, the detected data is transmitted to other devices for display, which uses the SX1276 wireless communication module.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard. Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life. For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.

FIND OUT MORE

Overview

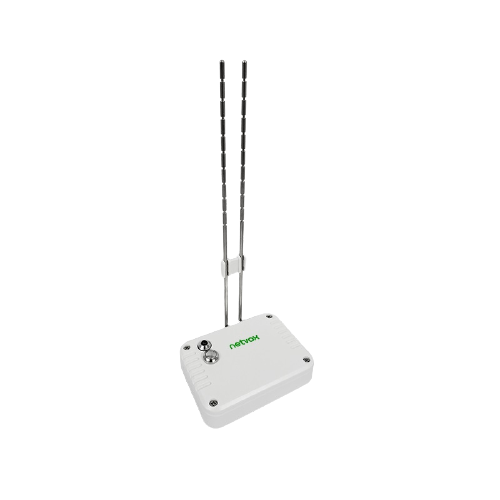

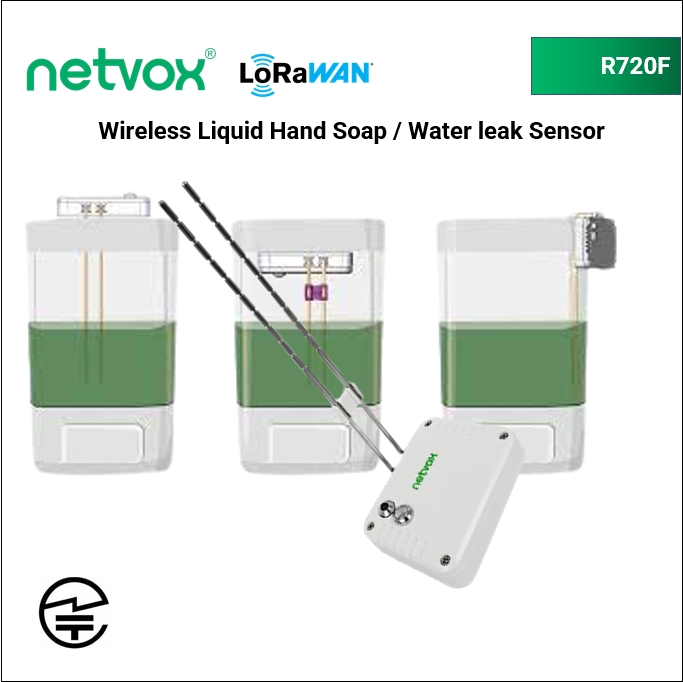

R720F series is a wireless communication device that can detect the existence of hand sanitizer / water leakage. This device is connected with two electrode rods which can be used to sense the state of the insufficient amount of hand sanitizer in the hand sanitizer box or whether there is water leakage in the detection area.

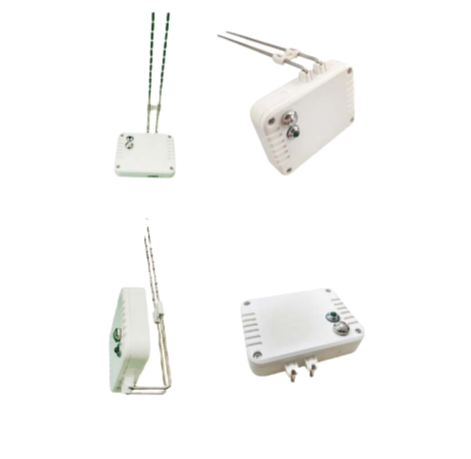

The shape and orientation of the electrode rod can be selected according to the needs (R720FLO, R720FLD,R720FU). The electrode rod can be trimmed to the required length as required by oneself.

The function of water leakage detection can choose R720FW.

Features

• LoRaWAN Class A compatible
• Apply SX1276 wireless communication module
• 2 ER14505 battery AA SIZE (3.6V / section) parallel power supply
• IP Rating: IP65
• Electrode rod detection
• Improved power management for longer battery life
• Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
• Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
• Battery Life*2:
Please refer to web: http://www.netvox.com.tw/electric/electric_calc.html
On this website, users can find battery lifetime for various models at different configurations.
*1. Actual range may vary depending on the environment.
*2. Battery life is determined by sensor reporting frequency and other variables

Specifications for R720F Wireless Liquid Hand Soap Sensor

Antenna
Installation Type	U-Type or W-Type or L-Type-Upward or L-Type-Downward
Uncategorized
Frequency band	AS923 or AU915 or EU868 or US915
Sensor	Electica Node
Waterproof	IP30
Class	Class A
Power type	2 x ER14505
Sleep Power consumption	24uA
Rx Sensitivity	-136dBm
Sensor Measurement Range	0.20~3.5m
TX Power	16dBm
Chipset	SX1276
Certification	TELEC
Cable length	NA
