  2. R831 Wireless Multifunctional Control Box
SGD Pricelist

R831 Wireless Multifunctional Control Box

  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Sensor Measurement Range
  • TX Power
  • Chipset
  • Certification
  • Sensors

SG$ 208.40 SG$ 208.40 208.4026 SGD

US$ 160.00

This combination does not exist.

Add to Cart

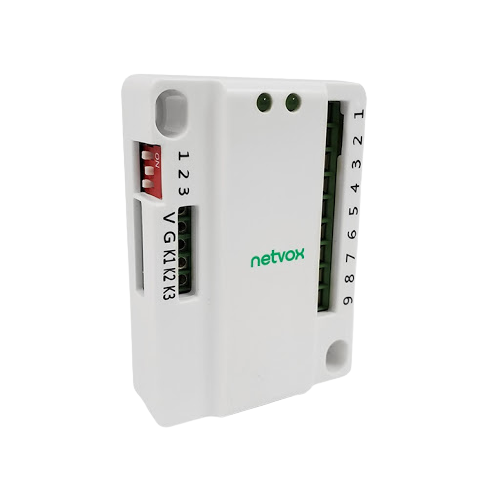

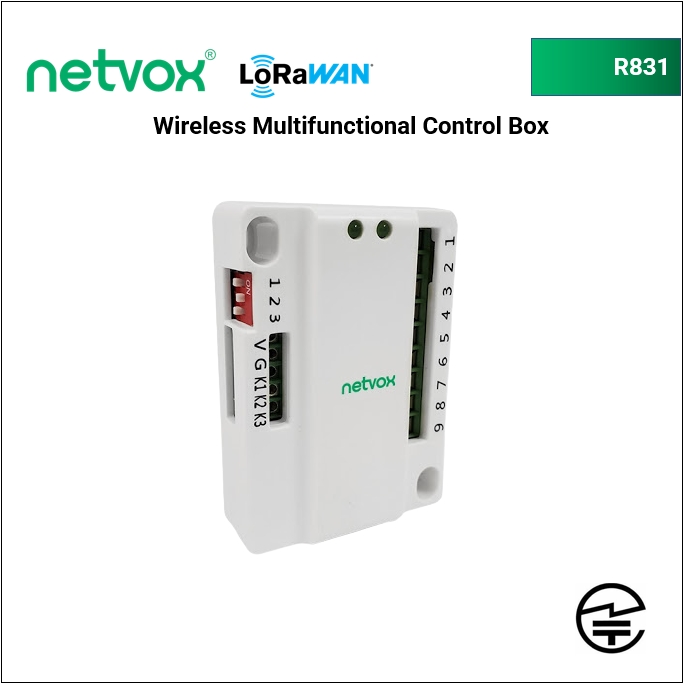

R831 is a device used to control the switch and is mainly used for the switch control of the strong electric motor control box.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


FIND OUT MORE

Overview

R831 can be equipped with a three-way controllable relay switch. The three-way relay output can be used as a dry contact. The user can separately control it through wireless commands which adopt the SX1276 wireless communication module. R831 can be divided into R831A, R831B, R831C, and R831D. R831A is a strong electric motor control box. R831B is the weak current motor control box. R831C and R831D are relay dry contact control boxes. The difference between R831C and R831D is that the three buttons of R831C control a certain relay fixedly (a total of 3 relays) while R831D reports the button status and determines which relay to control through the network linkage and the instruction.


          Feature

          Adopt SX1276 wireless communication module
          Curtain and roller shutter control
          Compatible with LoRaWAN™ Class C
          Frequency hopping spread spectrum technology
          Configuring parameters and reading data via the third-party software platforms, and set alarms via SMS text and email (optional)
          Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne

                    Specifications for R831 Wireless Multifunctional Control Box

                    Sensor Measurement Range High Load or Low Load or fixed relay or dynamic relay
                    Waterproof IP65
                    Class Class C
                    Frequency band AS923
                    Power type 2 X 3.6V ER14505 AA
                    Sleep Power consumption 30mA
                    Rx Sensitivity -136dBm
                    TX Power 16dBm
                    Chipset SX1276
                    Certification TELEC
                    Sensors Relay
