Waterproof Long Range Wireless Version 2 LoRa Sensor Node

LoRa transceiver
Cable length
Frequency band
OpenCPU
Power type
LoRaWAN version
Battery Capacity

SG$ 58.07 SG$ 58.07 58.0726 SGD

US$ 45.00

This combination does not exist.

Add to Cart

LSN50 is an open source product, it is based on the STM32Cube HAL drivers and lots of libraries can be found in ST site for rapid development.
1 x LSN50 v2 module
1 x External RF antenna

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Dragino

We focus on the Internet of Things industry and keep evaluating new technology on improving user experience in IoT solution. We provide OEM/ODM service to worldwide clients. We have a set of offshore products and development kits to help clients to test, design and produce innovation IoT products in the shorter time, lower cost and lowest risk. Dragino dedicates to promote Open Source IoT solution. Our Open Source products are sold world widely and gain good name in the Open Source Internet of Things filed.

More Detail

Overview

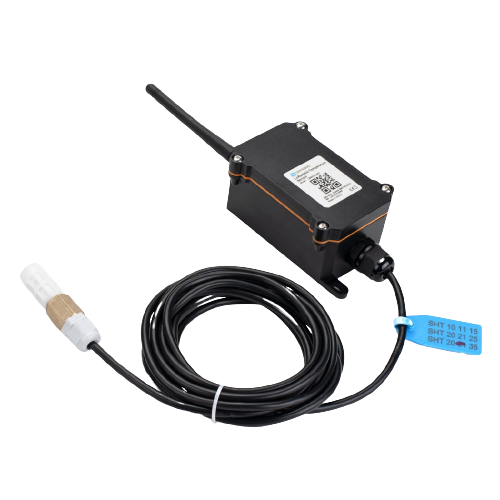

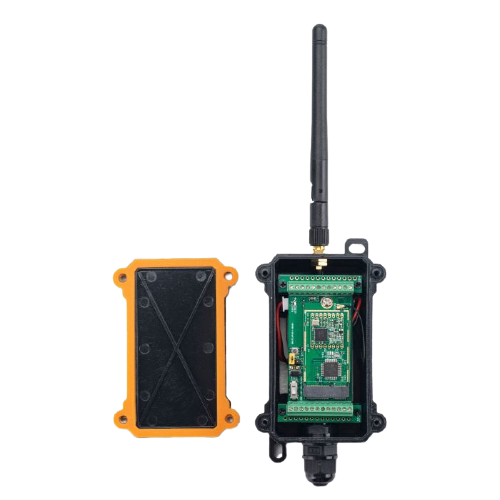

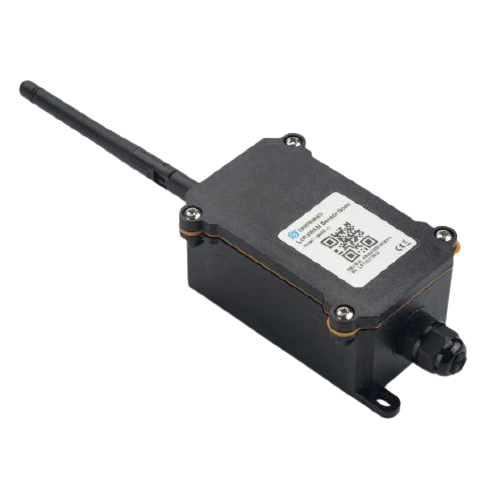

LSN50 LoRa Sensor Node is a Long Range LoRa Sensor Node. It is designed for outdoor use and powered by 4000mA or 8500mA Li/SOCl2 battery for long term use.LSN50 is designed to facilitate developers to quickly deploy industrial level LoRa and IoT solutions. It help users to turn the idea into a practical application and make the Internet of Things a reality. It is easy to program, create and connect your things everywhere.

LSN50 is an open source product, it is based on the STM32Cube HAL drivers and lots of libraries can be found in ST site for rapid development.

Features

STM32L072CZT6 MCU
SX1276/78 LoRa Wireless Modem
Pre-load with ISP bootloader
I2C,LPUSART1,USB
18 x Digital I/Os
2 x 12bit ADC; 1 x 12bit DAC
MCU wake up by UART or Interrupt
LoRa™ Modem
Preamble detection
Baud rate configurable
LoRaWAN 1.0.2 Specification
Software base on STM32Cube HAL drivers
Open source hardware / software
Available Band:433/868/915/920 Mhz
IP68 Waterproof Enclosure
Ultra Low Power consumption
AT Commands to setup parameters
4000mAh or 8500mAh Battery for Long term use

Applications

Specifications for Waterproof Long Range Wireless Version 2 LoRa Sensor Node

LoRaWAN
LoRa transceiver	SX1276
Uncategorized
Cable length	No Hole or M12 or M16
Battery Capacity	4000mAh or 8500mA
Frequency band	AS923
OpenCPU	Yes
Power type	Battery
LoRaWAN version	1.0.2
