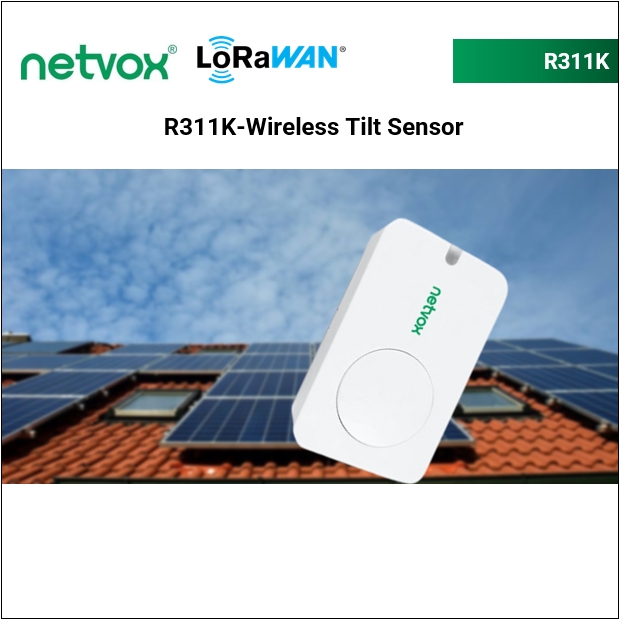

R311K-Wireless Tilt Sensor

Sensors
Waterproof
Class
Frequency band
Power type
Sleep Power consumption
Rx Sensitivity
Transmit Power
Chipset

SG$ 117.17 SG$ 117.17 117.16640000000001 SGD

US$ 86.00

This combination does not exist.

When the vibration sensor moves or vibrates, the R311DA can detect vibrations or moving signals and transmit the detected data to other devices through the wireless network.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard. Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life. For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.

FIND OUT MORE

Overview

This device is a tilt detection sensor. When the device (defaults to the vertical direction ) has a tilt of 45 degrees or more in any direction, a tilt signal will be issued. The detected data is transmitted to other devices through the wireless network.

Features

•Apply SX1276 wireless communication module
•2 sections of 3.0 V CR2450 battery
•Built-in tilt sensor
•LoRaWAN™ Class A compatible
•Frequency Hopping Spread Spectrum (FHSS)
•Configuration parameters can be configured through a third-party software platform
•Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
•Low power consumption and long battery life Improved po

Specifications for R311K-Wireless Tilt Sensor

Frequency band	AS923 or AU915 or KR920 or US915
Sensors	Tilt
Waterproof	IP30
Class	Class A
Power type	2 pcs 3.0V CR2450 button batteries
Sleep Power consumption	12uA
Rx Sensitivity	-136dBm
Transmit Power	16dBm
Chipset	SX1276
