WisGate Developer D0

Frequency band

SG$ 134.23 SG$ 134.23 134.2258 SGD

US$ 99.00

This combination does not exist.

Add to Cart

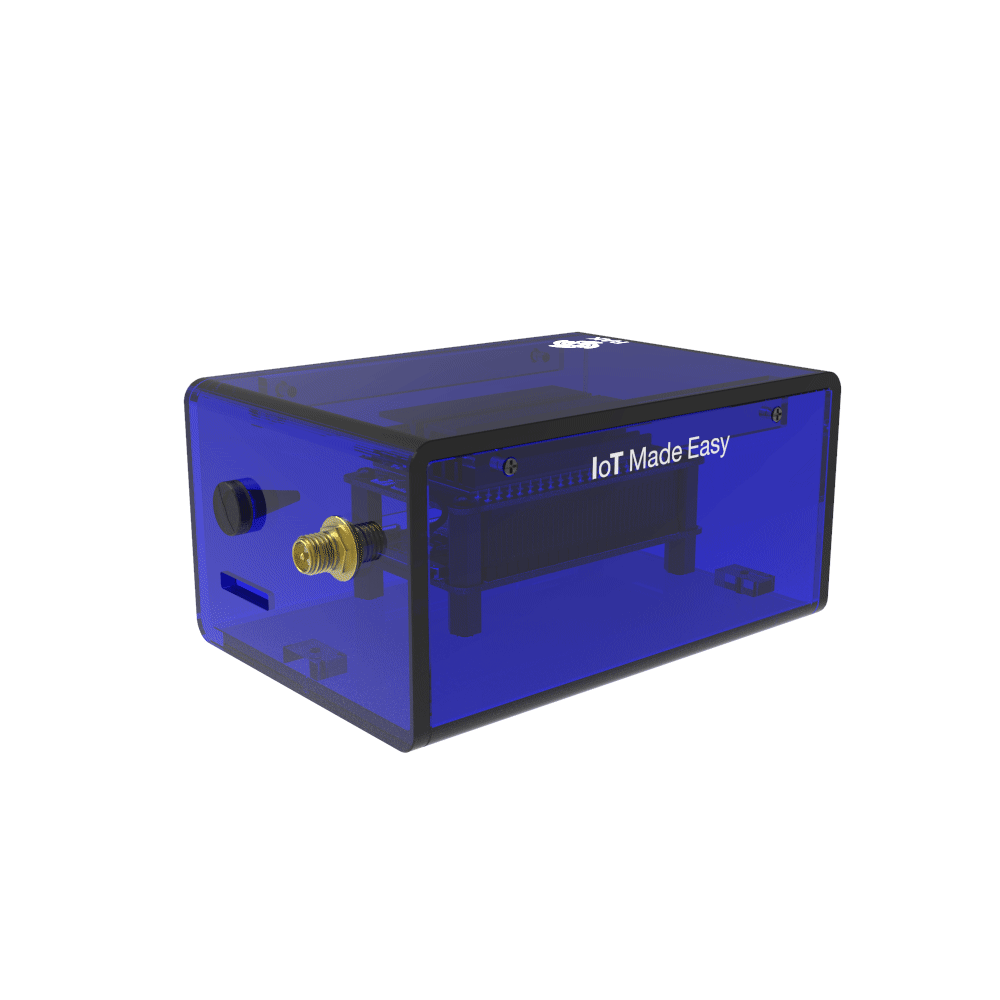

The RAK7246G is an LPWAN Developer Gateway with GPS function. It is a device composed of a the RAK2246 Pi HAT LPWAN Concentrator module and Raspberry Pi Zero W.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Rakwireless

RAKwireless is an industrial-leading connectivity provider that builds infrastructures and Modular Edge devices for IoT, Smart City, and Smart Agriculture markets with in-house developed solutions, utilizing LPWA (Low Power Wide Area) technologies.

Do something

Overview

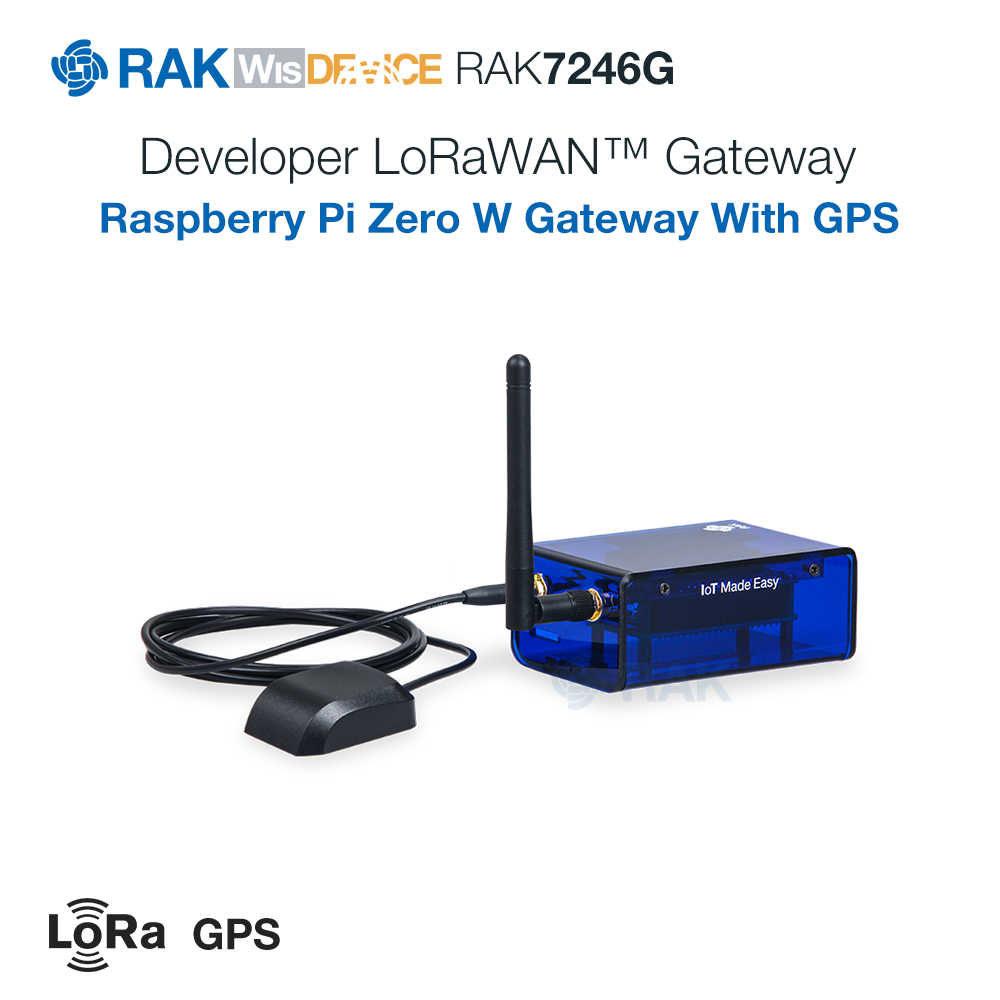

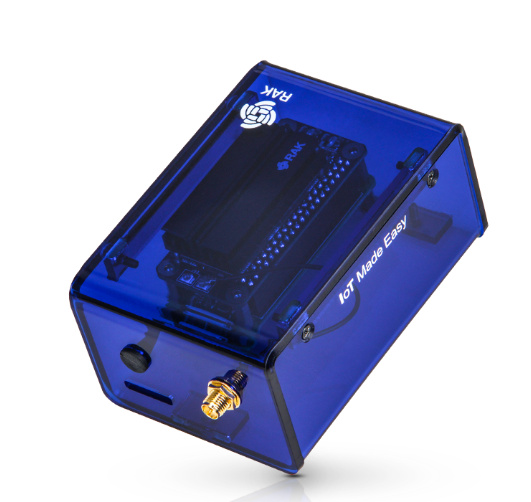

The RAK7246G is an LPWAN Developer Gateway with a GPS function. It is a device composed of the RAK2246 Pi HAT LPWAN Concentrator module and Raspberry Pi Zero W.

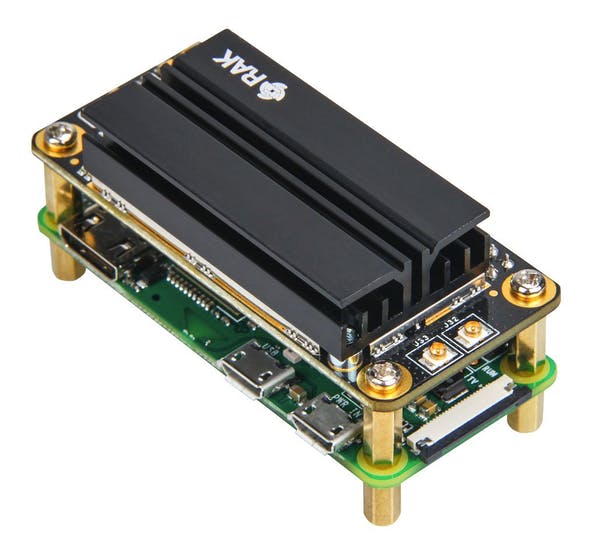

The RAK2246 Pi HAT is based on a Semtech SX1308 chip, which allows for simultaneous reception over 8 LoRa channels, which cover the entirety of the international high-frequency LoRaWAN space.

The RAK7246G Developer is an ideal choice for prototype design, concept verification and demonstrations, development evaluation, and other scenarios. It is developer-friendly due to its minimalistic design that reduces cost and allows for easily accessing the internals. It is easy to set up, which makes it a good choice for both experienced and novice LoRa specialists

Features

Using SX1308 baseband processor, full 8 uplink channels and 1 downlink channel Gateway;
The Pre-installed radiator guarantees the stable thermal performance
Tx max 20dbm, Rx min -139dbm @ SF12 at 125kHz;
Covers the entirety of the LoRa high-frequency band space: RU864, IN865, EU868, US915, AU915, KR920, AS923;
Power supply 5V / 2.5A (power adapter sold separately).
