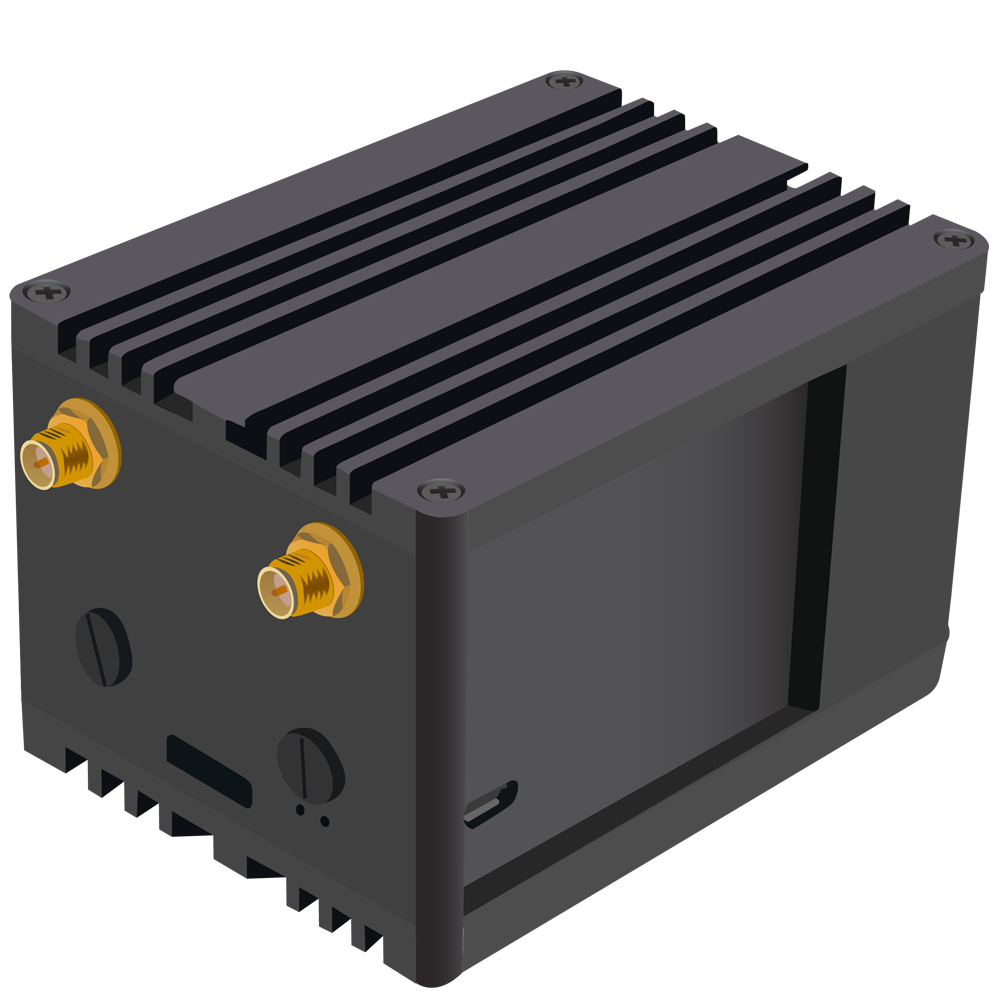

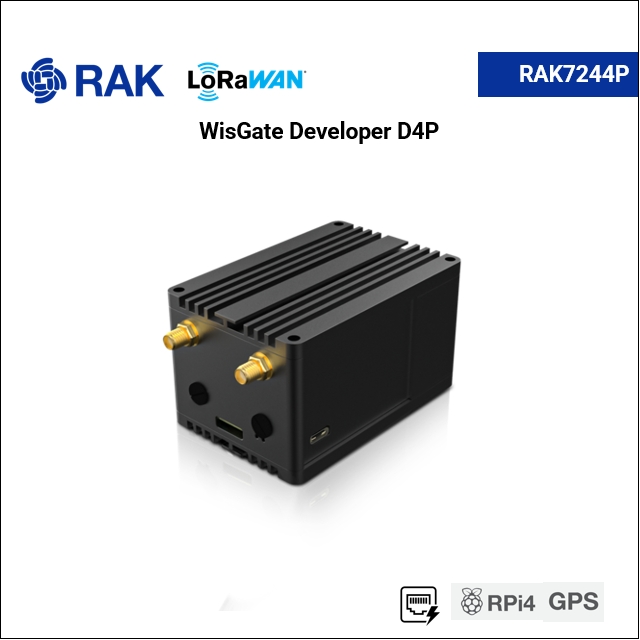

WisGate Developer D4P

Frequency band
Memory

SG$ 311.30 SG$ 311.30 311.3014 SGD

US$ 239.00

This combination does not exist.

Add to Cart

WisGate Developer D4P (RAK7244P) this version allows for powering the gateway via PoE by adding the RAK9003 Pi HAT to the base configuration (RPi 4 + RAK2245 + RAK9003)

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Rakwireless

TRAKwireless is an industrial-leading connectivity provider that builds infrastructures and Modular Edge devices for IoT, Smart City, and Smart Agriculture markets with in-house developed solutions, utilizing LPWA (Low Power Wide Area) technologies.

Do something

Overview

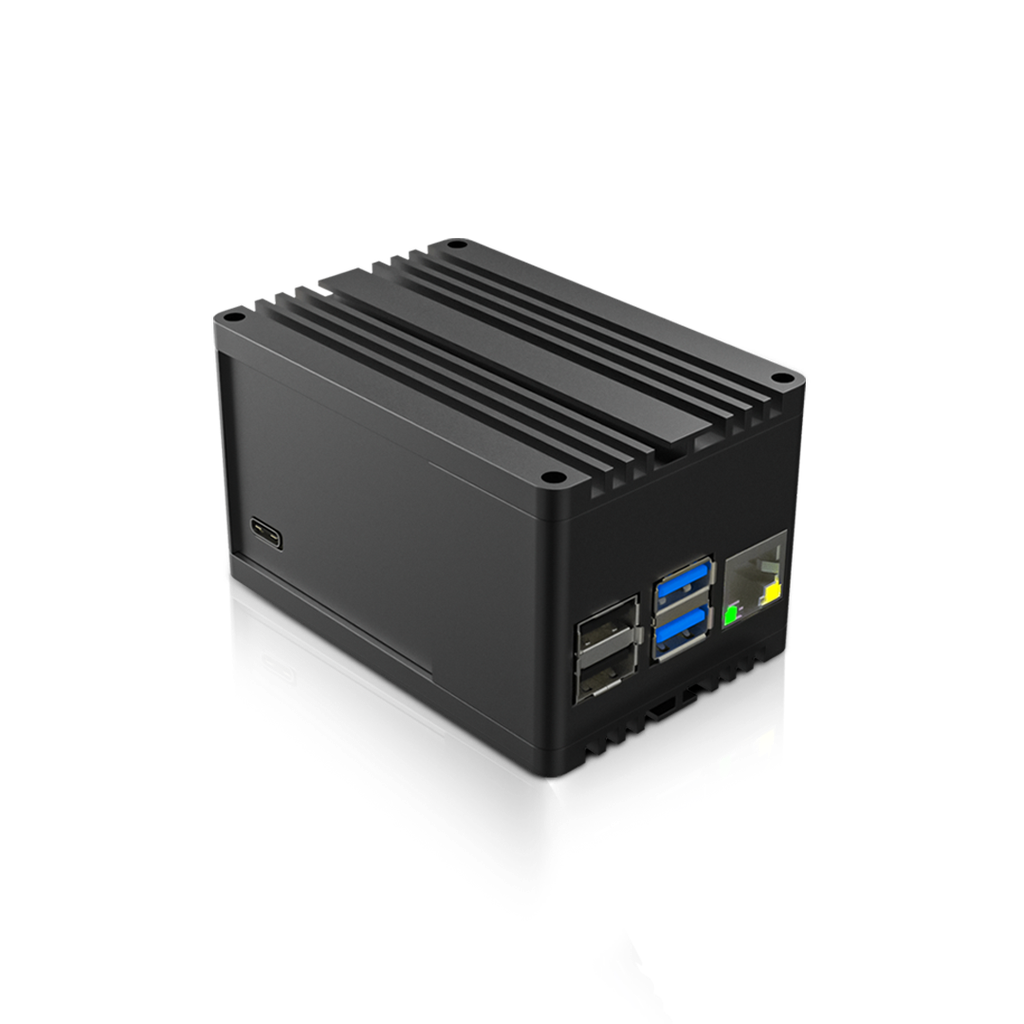

The WisGate Developer D4 (RAK7244) is a successor of WisGate Developer D3 (RAK7243). This device consists of a Raspberry Pi 4, a RAK2245 Pi HAT, which includes a GPS module, and a Heat Sink for better performance and thermal heat dissipation management. Its housing is entirely built from aluminum.

The built-in RAK2245 Pi HAT uses the SX1301 RF front-end chip from Semtech, which is a powerful LoRa® digital processing engine. It is able to receive up to 8 LoRa® packets simultaneously sent with different spreading factors on different channels and available in multiple variants so it can be used for all LoRa Alliance® frequency bands. This unique capability allows for innovative network architectures to be implemented, which is advantageous over other short-range systems.

WisGate Developer D4 is a Class A and C compliant that is ideal for prototyping, proof-of-concept demonstrations or for the evaluation of future deployment scenarios. It includes a ready to use Firmware based on Raspbian OS, which makes it possible to connect the Gateway to any standard LoRaWAN® Server. It is developer-friendly as the large Raspbian OS community is a well-established one. It is especially suited to addressing a variety of applications like Smart Grids, Intelligent Farms, and other IoT Enterprise applications.

Features

Refreshed Case design with a new MCU (Raspberry Pi4)
Preassembled, fully functioning LPWAN developer gateway
Full LoRaWAN® Stack support (version 1.0.2)
Supports for 8 channels and spreading factors (SF7-SF12)
Band support: 433MHz, 470MHz, 865MHz, 868MHz, 915MHz, 920MHz, 923MHz
TX power up to 27dBm
RX Sensitivity: -139dBm
Integrates Ublox MAX-7Q GPS module
Quectel EG95 LTE module
