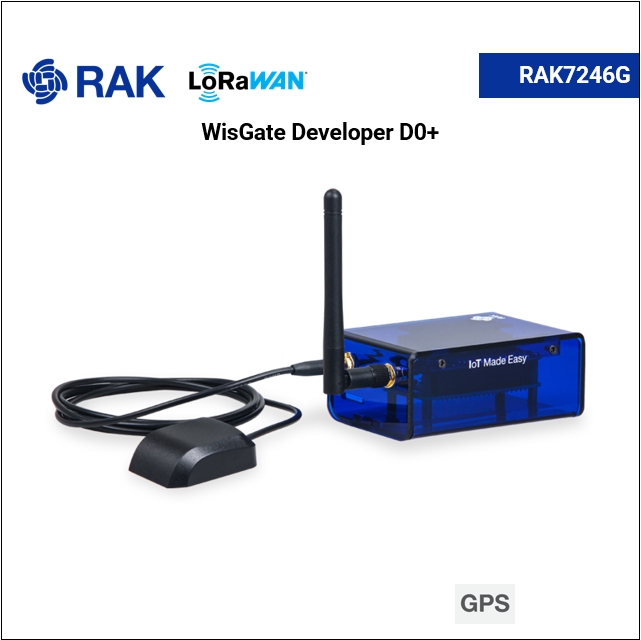

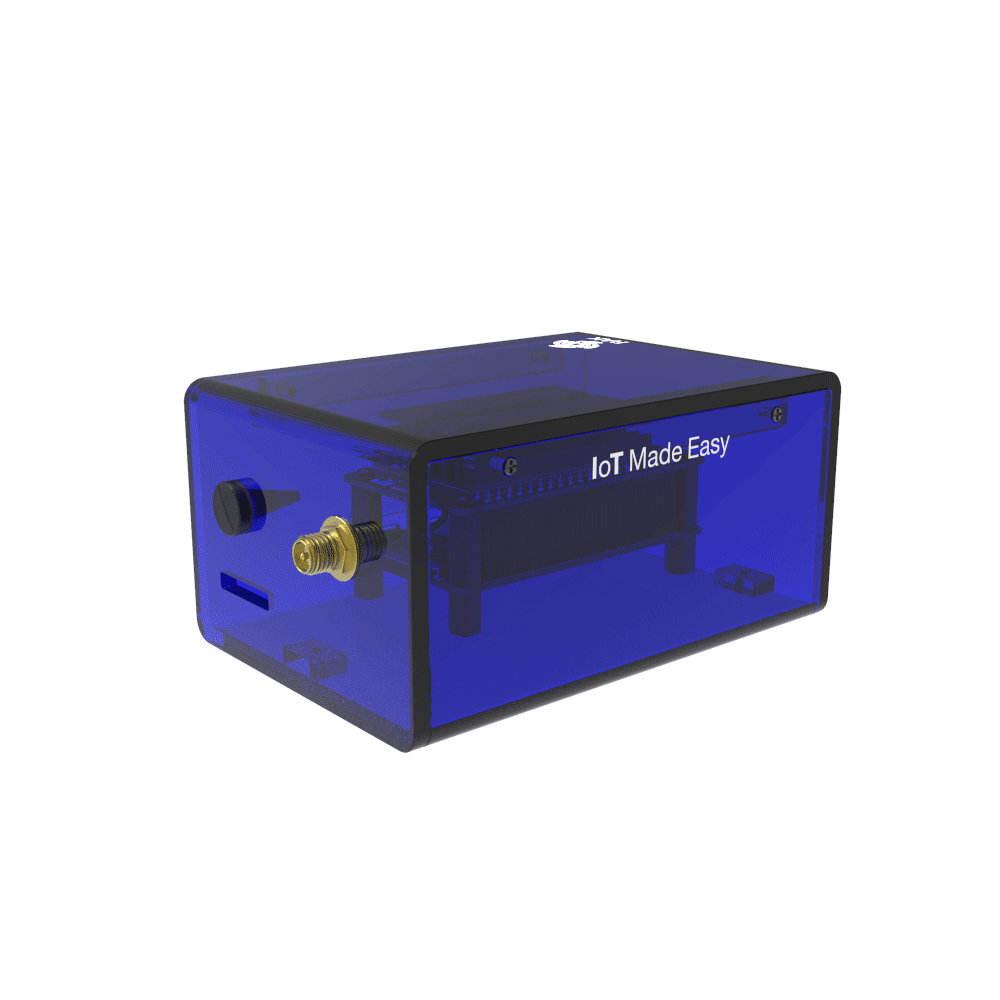

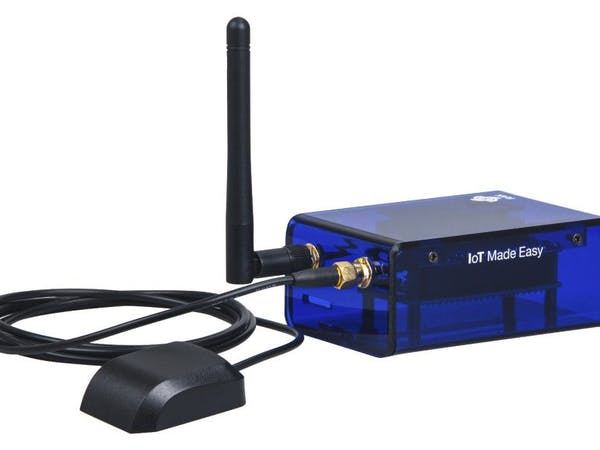

WisGate Developer D0+
WisGate Developer D0+ is a LoRaWAN® developer gateway with GPS function. It is a device composed of a the RAK2246 Pi HAT LPWAN Concentrator module and Raspberry Pi Zero W.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
WisGate Developer D0+ is a LoRaWAN® developer gateway with GPS function. It is a device composed of the RAK2246 Pi HAT LPWAN Concentrator module and Raspberry Pi Zero W.
This concentrator module is Class A and C compliant based on Semtech® SX1308 chip, which allows for simultaneous reception over 8 LoRa channels.
WisGate Developer D0+ is an ideal choice for prototype design, concept verification and demonstrations, development evaluation, and other scenarios. It is developer-friendly due to its minimalistic design that reduces cost and allows for easily accessing the internals. It is easy to set up, which makes it a good choice for both experienced and novice LoRa specialists.
Using SX1308 baseband processor, full 8 uplink channels and 1 downlink channel LoRaWAN® Gateway;
Built-in Ublox MAX-7Q GPS module;
The Pre-installed radiator guarantees stable thermal performance
Tx max 20dbm, Rx min -139dbm @ SF12 at 125kHz;
Covers the entirety of the LoRa high-frequency band space: RU864, IN865, EU868, US915, AU915, KR920, AS923;
Power supply 5V / 2.5A (power adapter sold separately).
Specifications for WisGate Developer D0+
|AS923 or AU915 or EU868 or IN865 or US915
