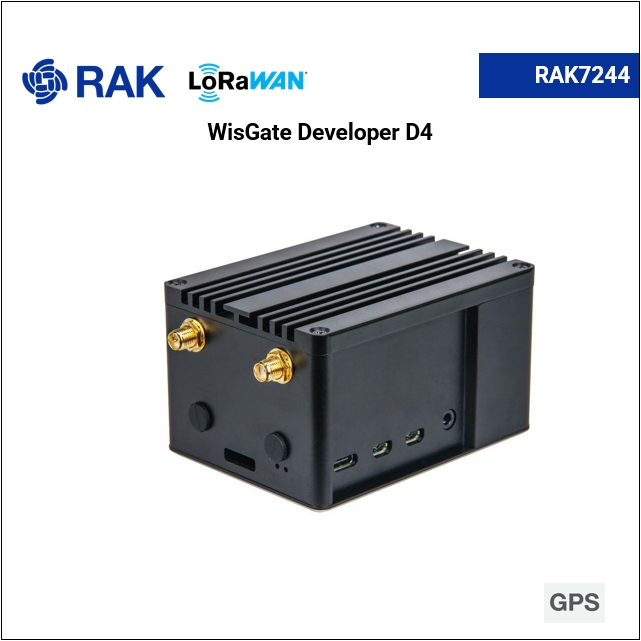

WisGate Developer D4

Frequency band
Memory

SG$ 287.43 SG$ 287.43 287.4331 SGD

US$ 212.00

This combination does not exist.

Add to Cart

5.5V module Radial lead shrink wrap 3.5F

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Rakwireless

RAKwireless is an industrial-leading connectivity provider that builds infrastructures and Modular Edge devices for IoT, Smart City, and Smart Agriculture markets with in-house developed solutions, utilizing LPWA (Low Power Wide Area) technologies.

Do something

Overview

WisGate Developer D4 is a Class A and C compliant that is ideal for prototyping, proof-of-concept demonstrations or for the evaluation of future deployment scenarios. It includes a ready to use Firmware based on Raspbian OS, which makes it possible to connect the Gateway to any standard LoRaWAN® Server. It is developer-friendly as the large Raspbian OS community is a well-established one. It is especially suited to addressing a variety of applications like Smart Grids, Intelligent Farms, and other IoT Enterprise applications.

Features

Refreshed Case design with a new MCU (Raspberry Pi4)
Preassembled, fully functioning LPWAN developer gateway
Full LoRaWAN® Stack support (version 1.0.2)
Supports for 8 channels and spreading factors (SF7-SF12)
Band support: 433MHz, 470MHz, 865MHz, 868MHz, 915MHz, 920MHz, 923MHz
TX power up to 27dBm
RX Sensitivity: -139dBm
Integrates Ublox MAX-7Q GPS module
