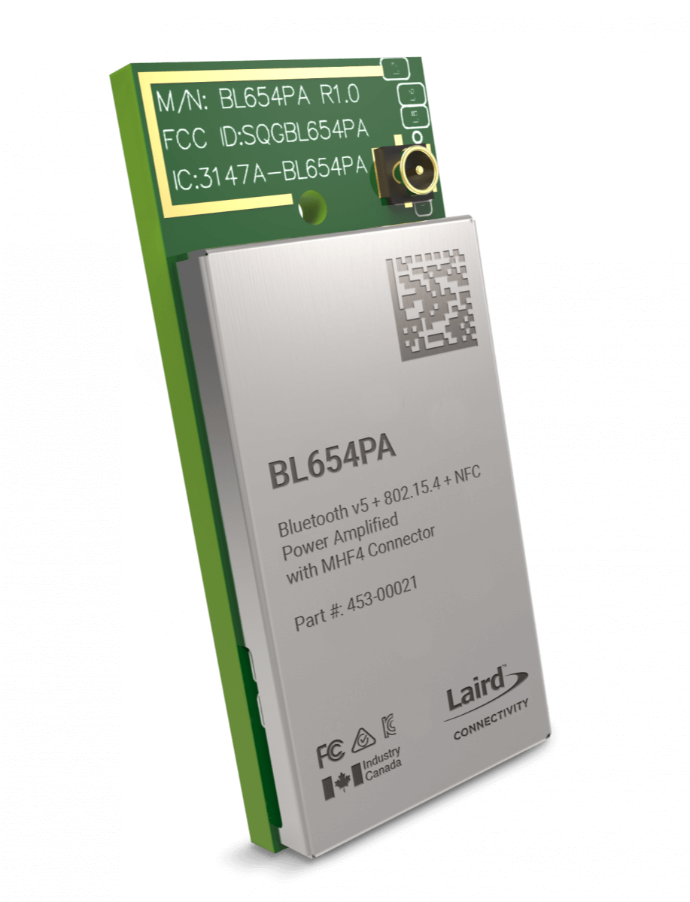

BL654PA Bluetooth 5.1 long range module
he BL654 series comes the most powerful yet - the BL654PA series! It provides OEMs with the maximum design flexibility and performance. A complete multi-protocol embedded wireless offering with exceptional processing capability, all with extended PA / LNA support for even greater range.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Building on Laird Connectivity’s expertise with Nordic from the BL654 series comes the most powerful yet - the BL654PA series! It provides OEMs with maximum design flexibility and performance. A complete multi-protocol embedded wireless offering with exceptional processing capability, all with extended PA / LNA support for an even greater range.
Powered by Nordic’s nRF52840 silicon, the small form factor BL654PA modules and DVKs provide for a secure, robust BLE and Cortex-M4F CPU for any OEM’s product design. The BL654 provides you with maximum development flexibility with programming options for a simple, intuitive AT Command Set, as well as Laird Connectivity’s own smartBASIC environment.
Bluetooth v5.1 Bluetooth Low Energy (BLE) plus NFC
Widest range of configurable interfaces: UART, I2C, SPI, ADC, GPIO, PWM,FREQ, USB, and NFC
Industrial Temp Rating (-40º to +85º C)
Ultra-Small footprint (22 mm x 10 mm x 2.2 mm)
BLE Peripheral/Central roles with DTM embedded
2Mbps & LE Long Range: Support for 2 Mbps, 1 Mbps, & 125 kps coded
Hostless operation – Internal MCU reduces BOM
Powerful Core Cortex-M4F (1 Mbit Flash, 256 k RAM)
Built on years of experience with Nordic (BL600 & BL652 Series)
Fully featured development kit everything needed to start BLE development
Application Design Choice: Leverage Laird’s smartBASIC or simple AT Command Set
Integrated Power Amplifier: Up to +18 dBM output power (up to +14 dBm in LE Coded mode – 125 kbps PHY
Specifications for BL654PA Bluetooth 5.1 long range module
|External Antenna or Integrate Antenna
|-40 °C ~ +85 °C
|Stack on Board
