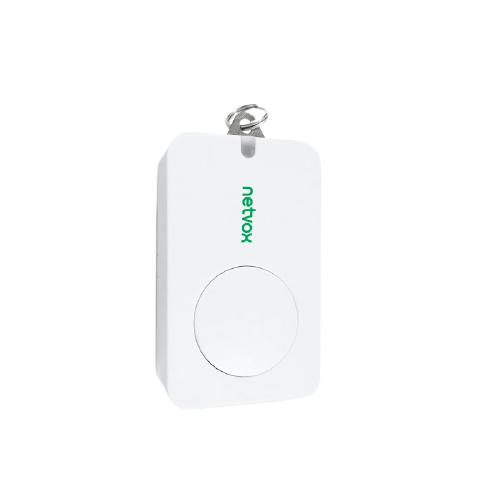

R312A Wireless Emergency Button
The R312A is an emergency button switch device that detects the closing or opening signal of the emergency button switch and sends an alarm signal to the gateway for processing. It uses the SX1276 wireless communication module.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Overview
The R312A is an emergency button switch device that detects the closing or opening signal of the emergency button switch and sends an alarm signal to the gateway for processing. It uses the SX1276 wireless communication module.
Features
LoRaWAN™ Class A compatible

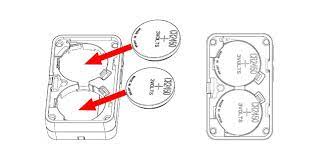

2*3.0V CR2450 button battery power supply
Emergency button status detection
Comes with keyring for easy fixing and carrying
Apply SX1276 wireless communication module
Frequency Hopping Spread Spectrum (FHSS)
Configuration parameters can be configured through a third-party software platform
Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
Low power consumption and long battery life Improved
Specifications for R312A Wireless Emergency Button
| LoRaWAN | |
|---|---|
| Configuration Interface | UART |
| Uncategorized | |
| Frequency band | AS923 or AU915 or CN470 or EU868 or US915 |
| Waterproof | IP30 |
| Class | Class A |
| Power type | 2 pcs 3.0V CR2450 button batteries |
| Sleep Power consumption | 13uA |
| Rx Sensitivity | -136dBm |
| Transmit Power | 16dBm |
| Chipset | SX1276 |
| Sensors | Button |
